EPDM Foam

EPDM is a copolymer of ethylene, propylene and a small amount of non-conjugated diolefin, a kind of ethylene-propylene rubber, expressed as EPDM (Ethylene Propylene Diene Monomer).

EPDM foam is strictly controlled by the raw material calendering and cooling, aging and standing, and then is extruded out of the sheet by high density and aging and standing to mold vulcanization, foaming, aging and standing, and safe cycle storage process to ensure the quality of finished products.

Because its main chain is composed of chemically stable saturated hydrocarbons, only the side chain contains unsaturated double bonds, its ozone resistance, heat resistance, weather resistance, and other aging resistance performance is excellent.

It can be widely used in automotive parts, waterproof materials for construction, wire and cable sheathing, heat-resistant hoses, tapes, etc.

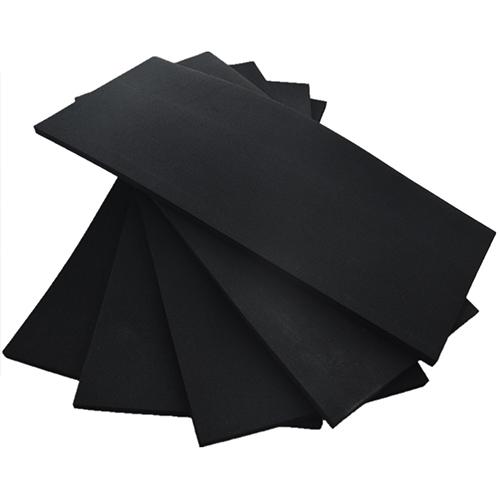

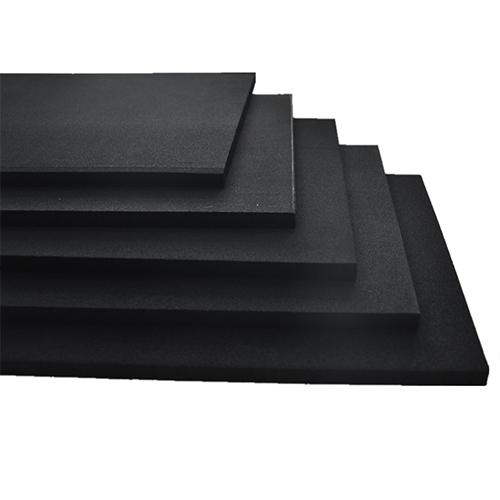

EPDM closed-cell foam

EPDM cloased cell foam original bed can provide sheet material of different thickness from 1mm to 60mm after cutting process. The original bed can be coated, gum, cutting, die cutting, composite and other processes to produce functional products with different needs.

Closed EPDM Foam density 55-750kg/m³, wide range, strong selectivity
Length and width: 1M*2M, thickness: 1--60MM
Temperature resistance (-40℃ to 150℃)

EPDM Closed Cell Foam
Item No.	Hardness	Density	Tensile strength	Elegation at break	Compression set (25%, 70*0, 22h)	Thermal shrinkage (70t：, 22h)	Tear strength	FMVSS3 02 UL94
	(Shore C)	(kg/m>)		(%)	(%)	(%)	(kn/m)
EPDM-8	8± 2	100 ± 20	>0.3	>200	<30	<3	>1.5	NA
EPDM-10	10±3	75 ±15	>0.3	>150	<30	<3	>1.5	NA
EPDM-15	15 ±3	130± 20	>0.5	>150	<30	<3	>2	NA
EPDM-20140	20±3	140 ± 20	>0.6	>150	<30	<3	>3	NA
EPDM-18	18±3	120± 20	>0.5	>150	<25	<3	>3	HBF
EPDM-20175	20±3	175 ± 25	>0.65	>150	<25	<3	>3.5	HBF
EPDM-30	30±3	190 ± 30	>0.9	>150	<25	<3	>5	NA
EPDM-40	40±5	22O± 30	>1	>200	<25	<3	>5	NA
EPDM-20120	20±5	120± 20	>0.5	>150	<30	<3	>3	HBF

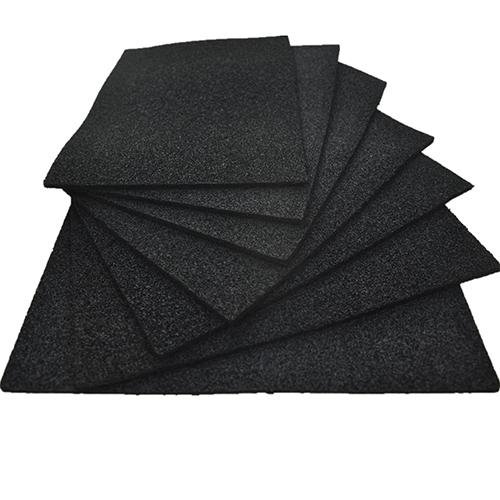

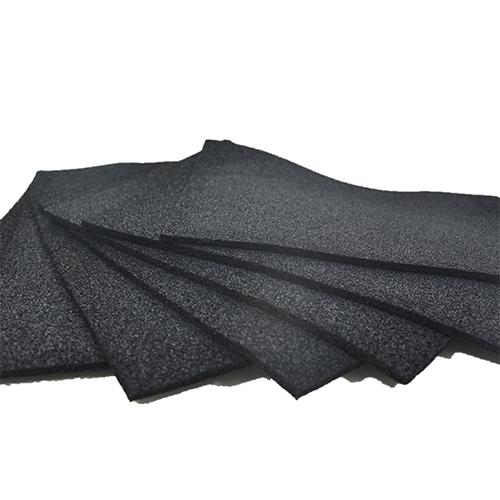

EPDM Open-cell Foam

EPDM open-cell foam original bed can provide sheet material of 2mm to 50mm thickness after the cutting process. The original bed can be coated, gum, cut, die-cutting, composite and other processes to produce functional products with different needs.

Open-cell EPDM foam is a lightweight material, with a density range of 70-300kg /m³
Length and width: 1M*2M, thickness: 2--50MM
Temperature resistance (-60℃ to 150℃)

EPDM Open Cell Foam
Item No.	Density	Tensile strength	Elongation at break	Compression set (2S%, 70C 22h)	Water absorption	Thermal shrinkage (70t：,22h)	Tear strength	FMVSS30 2UL94
	(kg/m>)	(M pa)	(%)	(%)	(%)	(%)	(kn/m)
EPDM-75	75 ±15	>0.05	>150	<20	<10	<1	>0.35	<80
EPDM-90	90±20	>0.07	>150	<20	<10	<1	>0.5	NA
EPDM-110	110 ±20	>0.08	>150	<20	<10	<1	>0.55	<80
EPDM-130	130 ±20	>0.08	>150	<20	<10	<1	>0.6	<80
EPDM-120	120 ±20	>0.08	>150	<20	<20	<1	>0.5	NA
EPDM-150	150 ±20	>0.1	>150	<20	<10	<1	>0.6	<40
EPDM-200	200 ±30	>0.1	>120	<20	<10	<1	>0.6	<40
EPDM-100	100 ±20	>0.08	>150	<20	<10	<1	>0.5	<40

EPDM Foam Features

Meet the most stringent fire retardant requirements
Good long-term temperature resistance
Good resilience, good long-term sealing
Life span is 10-30 years longer
Excellent aging resistance, weather resistance (light, heat, and oxygen), excellent ozone resistance;
Low thermal conductivity (3.2), heat insulation, good heat preservation
High impact strength, good shock absorption, and damping performance
Good insulation performance
A wide range of hardness can meet all requirements from 5 degrees to 70 degrees (Shaw C)
Low odor, low VOC, TVOC standards, more in line with the automotive industry standards
The material is more environmentally friendly, and the environmental protection grade is diversified: low halogen series, low sulfur series, low ammonia series, halogen-free series, sulfur-free series, ammonia-free series

EPDM Foam Applications

Sealing, heat insulation, seismic, sound insulation, fire prevention, insulation, anti-static, anti-aging, anti-wear
Used for aviation, automobile, high-speed railway digital products
In the automotive industry, lamp seals, air conditioning, dashboard, engine insulation, and cushion.
In the construction industry, sealing and leakproof, fire prevention and shock release, pipe insulation
Rail transit, shockproof insulation, sound insulation, and fire prevention
The shipbuilding industry, sealing, fire prevention
Electronic industry, sealing, fire prevention, heat insulation, insulation
Aerospace, sealing, shock absorption, thermal insulation
Automotive industry: light baffle, door mirror, car taillight, door, trunk seals, engine shock absorption materials
Home appliances: sealing materials for refrigerators, refrigeration units, air conditioners, and vending machines
Packaging material: cushioning and shockproof material for transportation of precision instruments and medical instruments
Building materials: residential sound insulation wall materials, decoration boards, sealing materials for doors and Windows
Communication infrastructure
New energy battery, single module filling, fixed, new energy battery box application, lithium battery assembly application, battery box assembly sealing
Home appliances, cell phones, computers.
Liquid crystal window around, dustproof, fill space, absorb shock, increase shading
Screen cushion gasket, no pollution, prevents instability
Screen cushion, keyboard buffer, keyboard cushion, loudspeaker cushion
